The PIC12F629-I/SN is a high performance, enhanced flash microcontroller with 10-bit A/D. It comes in 8-pin PDIP, SOIC, MLF-S and DFN packages. ThePIC12F629-I/SN device has a 13-bit program counter capable of addressing an 8K x 14 program memory space.
Parametrics
Absolute maximum ratings:(1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3 to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin : 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all GPIO: 125 mA; (14)Maximum current sourced all GPIO: 125 mA.
Features
Special Microcontroller Features:(1)Internal and External Oscillator Options: Precision Internal 4 MHz oscillator factory calibrated to ±1%; External Oscillator support for crystals and resonators; 5us wake-up from Sleep, 3.0V, typical; (2)Power-Saving Sleep mode; (3)Wide Operating Voltage Range – 2.0V to 5.5V; (4)Industrial and Extended Temperature Range; (5)Low-Power Power-on Reset (POR); (6)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (7)Brown-out Detect (BOD); (8)Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation; (9)Multiplexed MCLR/Input Pin; (10)Interrupt-on-Pin Change; (11)Individual Programmable Weak Pull-ups; (12)Programmable Code Protection; (13)High Endurance Flash/EEPROM Cell: 100,000 write Flash endurance; 1,000,000 write EEPROM endurance; flash/Data EEPROM Retention: > 40 years.

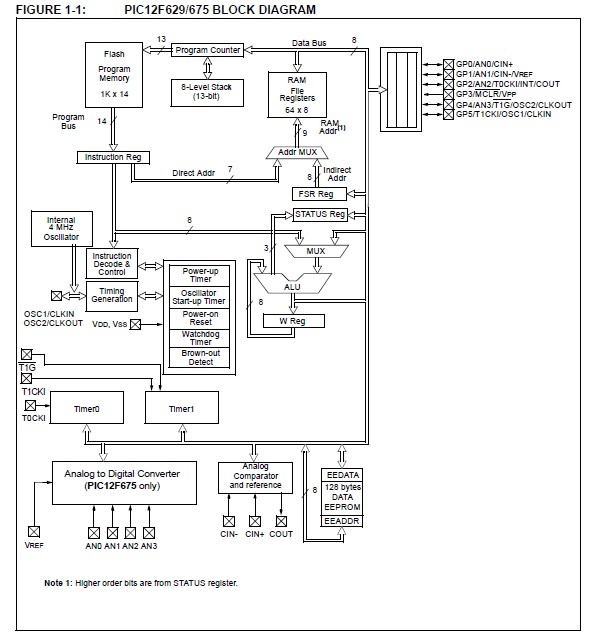

Diagrams
