Product Summary

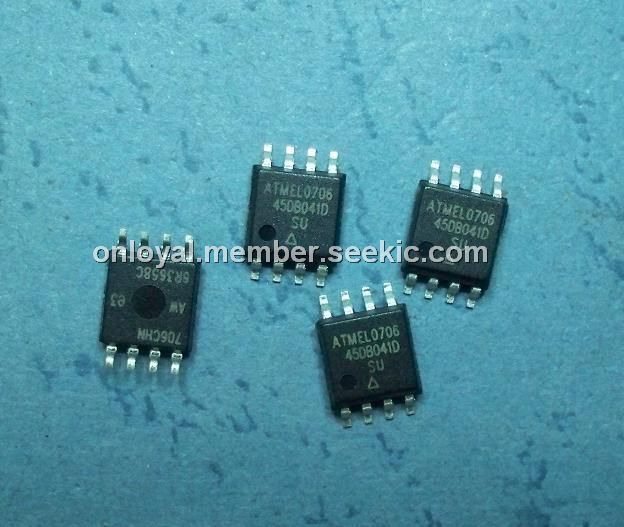

The AT45DB161D-SU is one member of the AT45DB161D series.The AT45DB161D is a 2.5-volt or 2.7-volt, serial-interface sequential access Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The AT45DB161D supports RapidS serial interface for applications requiring very high speed operations. RapidS serial interface is SPI compatible for frequencies up to 66 MHz. Its 17,301,504 bits of memory are organized as 4,096 pages of 512 bytes or 528 bytes each. In addition to the main memory, the AT45DB161D also contains two SRAM buffers of 512/528 bytes each.
Parametrics
Absolute maximum ratings: (1)temperature under bias:-55 to 125℃;(2)storage temperature:-65 to 150℃;(3)all input voltages (including NC pins)with respect to ground:-0.6 to 6.25V;(4)all output voltages with respect to ground:-0.6 to Vcc+0.6V.
Features
Features: (1)512 bytes per page; (2)528 bytes per page; (3)page size can be factory pre-configured for 512 bytes; (4)intelligent programming operation; (5)4,096 pages (512/528 bytes/page) main memory; (6)allows receiving of data while reprogramming the flash array; (7)continuous read capability through entire array; (8)ideal for code shadowing applications; (9)JEDEC standard manufacturer and device ID read; (10)100,000 program/erase cycles per page minimum; (11)data retention–20 years; (12)industrial temperature range; (13)green (Pb/halide-free/RoHS compliant) packaging options.

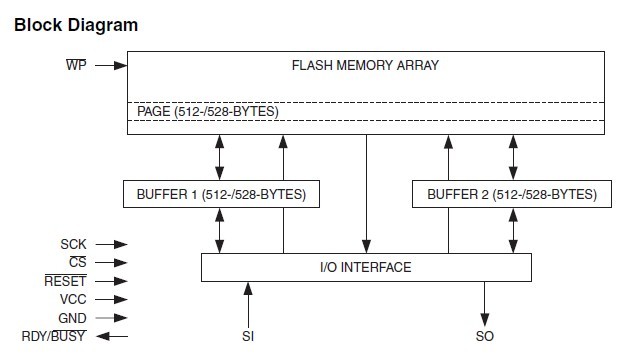

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB161D-SU |
Atmel |
Flash 16M 8 I/O Pins SPI 528B 2.5V 2.7V |
Data Sheet |
Negotiable |
|
||||
|
AT45DB161D-SU-2.5 |
Atmel |
Flash 16MB SERIAL - IND TEMP |
Data Sheet |
Negotiable |
|
||||
