PIC16F54-I/SS

Product Summary

The PIC16F54-I/SS is PIC microcontrollers (MCUs). The Flash-based PIC microcontrollers (MCUs) are used in an wide range of everyday products, from smoke detectors, hospital ID tags and pet containment systems, to industrial, automotive and medical products. PIC MCUs featuring nanoWatt technology implement a variety of important features which have become standard in PIC microcontrollers. Since the release of nanoWatt technology, changes in MCU process technology and improvements in performance have resulted in new requirements for lower power. PIC MCUs with nanoWatt eXtreme Low Power (nanoWatt XLP) improve upon the original nanoWatt technology by dramatically reducing static power consumption and providing new flexibility for dynamic power management.

Parametrics

Absolute maximum ratings: (1)Ambient Temperature under bias: -40℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: 0V to +6.5V; (4)Voltage on MCLR with respect to VSS: 0V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.6V to (VDD + 0.6V); (6)Total power dissipation: 800 mW; (7)Max. current out of VSS pin: 150 mA; (8)Max. current into VDD pin: 100 mA; (9)Max. current into an input pin (T0CKI only): ±500 μA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Max. output current sunk by any I/O pin: 25 mA; (13)Max. output current sourced by any I/O pin: 25 mA; (14)Max. output current sourced by a single I/O port (PORTA, B or C): 50 mA; (15)Max. output current sunk by a single I/O port (PORTA, B or C): 50 mA.

Features

Features: (1)18-pin packaging; (2)Baseline Core with 33 Instructions, 2 Stack Levels; (3)All single-cycle Instructions except for program branches which are two cycles; (4)12-bit wide instructions; (5)8-bit wide data path; (6)25 mA source/sink current I/O; (7)Low power (100nA) sleep current ; (8)One 8-bit timer (TMR0); (9)Watchdog timer (WDT); (10)In-Circuit Serial Programming; (11)In-Circuit debugging support; (12)Programmable code protection.

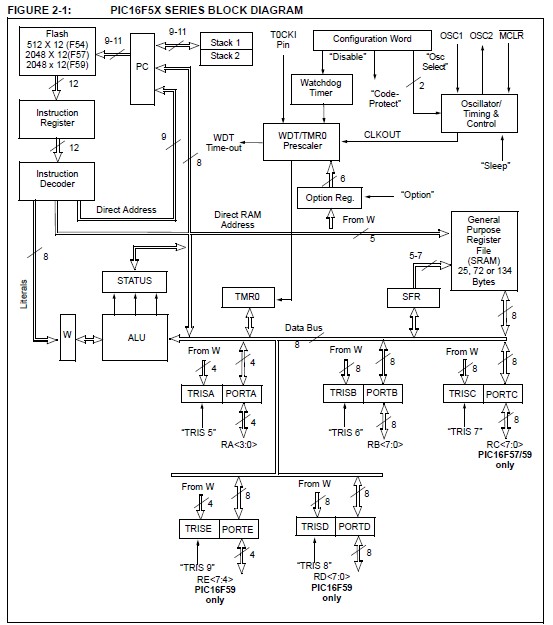

Diagrams
