Product Summary

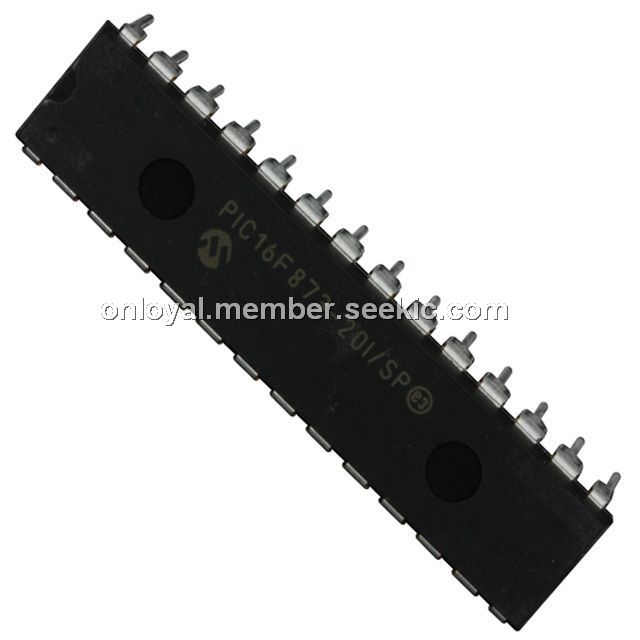

The PIC16F873A-I/SP is a 28-Pin Enhanced FLASH Microcontroller. It is available only in 28-pin packages.
Parametrics
Absolute maximum ratings: (1)Ambient temperature under bias:-55℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4):-0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS:-0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS:0V to +14V; (6)Voltage on RA4 with respect to Vss:0V to +8.5V; (7)Total power dissipation:1.0W; (8)Maximum current out of VSS pin:300mA; (9)Maximum current into VDD pin:250mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD):±20mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD):±20mA; (12)Maximum output current sunk by any I/O pin:25mA; (13)Maximum output current sourced by any I/O pin:25mA; (14)Maximum current sunk by PORTA, PORTB, and PORTE (combined):200mA; (15)Maximum current sourced by PORTA, PORTB, and PORTE (combined):200 mA; (16)Maximum current sunk by PORTC and PORTD (combined):200 mA; (17)Maximum current sourced by PORTC and PORTD (combined):200 mA.
Features
Features: (1)10-bit, up to 8 channel Analog-to-Digital Converter (A/D) ; (2)Brown-out Reset (BOR); (3)100,000 erase/write cycle Enhanced FLASH program memory typical; (4)1,000,000 erase/write cycle Data EEPROM memory typical; (5)Data EEPROM Retention > 40 years; (6)Self-reprogrammable under software control; (7)In-Circuit Serial Programming (ICSP) via two pins; (8)Single supply 5V In-Circuit Serial Programming; (9)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (10)Programmable code protection; (11)Power saving SLEEP mode; (12)Selectable oscillator options; (13)In-Circuit Debug (ICD) via two pins.

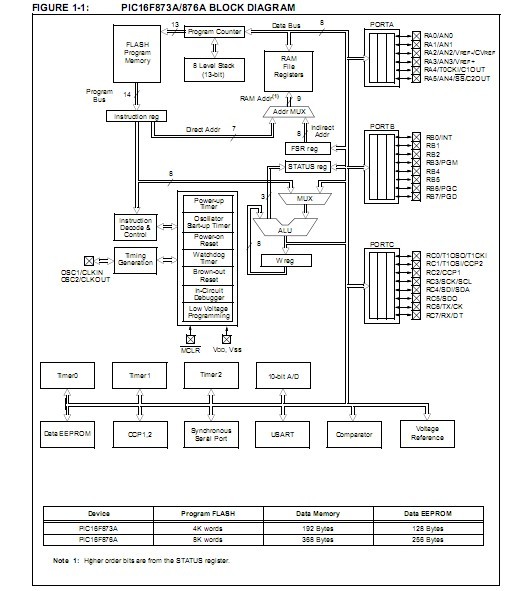

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC16F873A-I/SP |
Microchip Technology |
8-bit Microcontrollers (MCU) 7KB 192 RAM 22 I/O |
Data Sheet |
|
|
||||||||||||
 |
PIC16F873A-I/SPREL |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
