Product Summary

The MCP602-I/SN low-power operational amplifier (op amp) is offered in dual configurations. The op amp utilizes an advanced CMOS technology that provides low bias current, highspeed operation, high open-loop gain, and rail-to-rail output swing. This product offering operates with a single supply voltage that can be as low as 2.7V, while drawing 230 μA (typical) of quiescent current per amplifier. These MCP602-I/SN is appropriate for low power, battery operated circuits due to the low quiescent current, for A/D convert driver amplifiers because of their wide bandwidth or for anti-aliasing filters by virtue of their low input bias current. It is available in standard 8-lead PDIP, SOIC, and TSSOP packages.

Parametrics

Absolute maximum ratings: (1)VDD – VSS: 7.0V; (2)Current at Input Pins: ±2 mA; (3)Analog Inputs (VIN+, VIN–): VSS – 1.0V to VDD + 1.0V; (4)All Other Inputs and Outputs: VSS – 0.3V to VDD + 0.3V; (5)Difference Input Voltage: |VDD – VSS|; (6)Output Short Circuit Current: Continuous; (7)Current at Output and Supply Pins: ±30 mA; (8)Storage Temperature: –65℃ to +150℃; (9)Maximum Junction Temperature (TJ): +150℃; (10)ESD Protection On All Pins (HBM; MM): ≥ 3 kV; 200V.

Features

Features: (1)Single-Supply: 2.7V to 6.0V; (2)Rail-to-Rail Output; (3)Input Range Includes Ground; (4)Gain Bandwidth Product: 2.8 MHz (typical); (5)Unity-Gain Stable; (6)Low Quiescent Current: 230 μA/amplifier (typical); (7)Chip Select (CS): MCP603 only; (8)Temperature Ranges: Industrial: -40℃ to +85℃; Extended: -40℃ to +125℃; (9)Available in Single, Dual, and Quad.

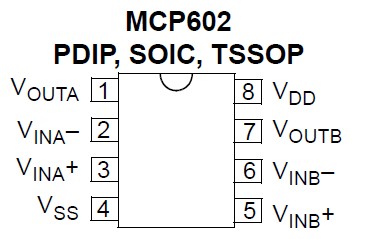

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MCP602-I/SN
MCP602-I/SN

Microchip Technology

Operational Amplifiers - Op Amps Dual 2.7V

Data Sheet

0-1: $0.37
1-10: $0.34
10-25: $0.29
25-100: $0.26
