Product Summary
The 24LC64X-I/ST is a 64 Kbit Electrically Erasable PROM. The device is organized as a single block of 8K x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 μA and 1 mA, respectively. It has been developed for advanced, lowpower applications such as personal communications or data acquisition. The24LC64X-I/ST also has a page write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 512Kbits address space. The 24LC64X-I/ST is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, DFN and MSOP packages.
Parametrics
Absolute maximum ratings: (1)VCC: 6.5V; (2)All inputs and outputs w.r.t. VSS : -0.3V to VCC +1.0V; (3)Storage temperature: 65℃ to +150℃; (4)Ambient temperature with power applied: -40℃ to +125℃; (5)ESD protection on all pins : ≥ 4 kV.
Features
Features: (1)Single-supply with operation down to 1.7V 2.5V for 24LC64 devices; (2)Low-power CMOS technology: Active current 1 mA, typical; Standby current 1uA, typical; (3)2-wire serial interface, I2Ccompatible; (4)Schmitt Trigger inputs for noise suppression; (5)Output slope control to eliminate ground bounce; (6)100 kHz and 400 kHz clock compatibility; (7)1 MHz clock for FC versions; (8)Page write time 5 ms, typical; (9)Self-timed erase/write cycle; (10)32-byte page write buffer; (11)Hardware write-protect; (12)ESD protection > 4,000V; (13)More than 1 million erase/write cycles; (14)Data retention > 200 years; (15)Factory programming available; (16)Packages include 8-lead PDIP, SOIC, TSSOP,; (17)MSOP and DFN; (18)Pb-free and RoHS compliant; (19)Temperature ranges: Industrial (I): -40℃ to +85℃; Automotive (E): -40℃ to +125℃.

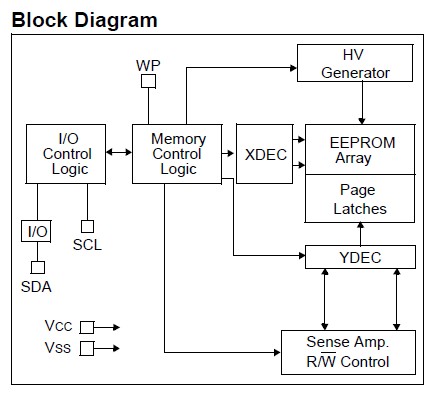

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 24LC64X-I/ST |
Microchip Technology |
EEPROM 8kx8 - 2.5V Rot Pin |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
24LC00 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
24LC00/P |
Microchip Technology |
EEPROM 128 Bit 1.8V I2C bus |
Data Sheet |
|
|
||||||||||||
|
24LC00/S |
Microchip Technology |
EEPROM 16 byte, 128 bit, 2.5V SEE DIE in WAFFLE PK |
Data Sheet |
Negotiable |
|
||||||||||||
 |
24LC00/SN |
Microchip Technology |
EEPROM 16byte 128kb 1.8V |
Data Sheet |
|
|
||||||||||||
|
24LC00/ST |
Microchip Technology |
EEPROM 16byte 128kb 1.8V |
Data Sheet |
|
|
||||||||||||
|
24LC00/W |
Microchip Technology |
EEPROM 16 byte, 128 bit, 2.5V SEE WAFER |
Data Sheet |
Negotiable |
|
||||||||||||
